Isovue

Generic Name: iopamidol
Dosage Form: injection, solution

Isovue®-200
Iopamidol Injection 41%
Isovue®-250
Iopamidol Injection 51%
Isovue®-300
Iopamidol Injection 61%
Isovue®-370
Iopamidol Injection 76%

NOT FOR INTRATHECAL USE

Isovue 200, 250, 300 and 370 are NOT FOR INTRATHECAL USE.
See Indications, and Dosage and Administration sections for further details
on proper use
DIAGNOSTIC
NONIONIC RADIOPAQUE CONTRAST MEDIA
For Angiography Throughout the Cardiovascular
System, Including Cerebral and Peripheral Arteriography,
Coronary Arteriography and Ventriculography,
Pediatric Angiocardiography, Selective Visceral
Arteriography and Aortography,
Peripheral Venography (Phlebography), and
Adult and Pediatric Intravenous Excretory
Urography and Intravenous Adult and Pediatric
Contrast Enhancement of Computed Tomographic
(CECT) Head and Body Imaging

Isovue Description

Isovue (lopamidol Injection) formulations are stable, aqueous, sterile, and nonpyrogenic solutions for intravascular administration.

Each mL of Isovue-200 (lopamidol Injection 41%) provides 408 mg iopamidol with 1 mg tromethamine and 0.26 mg edetate calcium disodium. The solution contains approximately 0.029 mg (0.001 mEq) sodium and 200 mg organically bound iodine per mL.

Each mL of Isovue-250 (lopamidol Injection 51%) provides 510 mg iopamidol with 1 mg tromethamine and 0. 33 mg edetate calcium disodium. The solution contains approximately 0.036 mg (0.002 mEq) sodium and 250 mg organically bound iodine per mL.

Each mL of Isovue-300 (lopamidol Injection 61%) provides 612 mg iopamidol with 1 mg tromethamine and 0.39 mg edetate calcium disodium. The solution contains approximately 0.043 mg (0.002 mEq) sodium and 300 mg organically bound iodine per mL.

Each mL of Isovue-370 (lopamidol Injection 76%) provides 755 mg iopamidol with 1 mg tromethamine and 0.48 mg edetate calcium disodium. The solution contains approximately 0.053 mg (0.002 mEq) sodium and 370 mg organically bound iodine per mL.

The pH of Isovue contrast media has been adjusted to 6.5-7.5 with hydrochloric acid and/or sodium hydroxide. Pertinent physicochemical data are noted below. Isovue (lopamidol Injection) is hypertonic as compared to plasma and cerebrospinal fluid (approximately 285 and 301 mOsm/kg water, respectively).

Parameter  41% 51% 61% Iopamidol
76%
Concentration
    (mgl/mL)
200 250 300 370
Osmolality @ 37° C
(mOsm/kg water)
413 524 616 796
Viscosity (cP) @ 37° C 2.0 3.0 4.7  9.4
@ 20° C 3.3 5.1 8.8 20.9
Specific Gravity @ 37° C  1.227 1.281 1.339  1.405

lopamidol is designated chemically as (S)-N,N’-bis[2-hydroxy-1-(hydroxymethyl)-ethyl]-2,4,6-triiodo-5-lactamidoisophthalamide. Structural formula:

MW 777.09
C17H22I3N3O8
CAS-60166-93-0
Organically Bound Iodine: 49%

Isovue - Clinical Pharmacology

Intravascular injection of a radiopaque diagnostic agent opacifies those vessels in the path of flow of the contrast medium, permitting radiographic visualization of the internal structures of the human body until significant hemodilution occurs.

Following intravascular injection, radiopaque diagnostic agents are immediately diluted in the circulating plasma. Calculations of apparent volume of distribution at steady-state indicate that iopamidol is distributed between the circulating blood volume and other extracellular fluid; there appears to be no significant deposition of iopamidol in tissues. Uniform distribution of iopamidol in extracellular fluid is reflected by its demonstrated utility in contrast enhancement of computed tomographic imaging of the head and body following intravenous administration.

The pharmacokinetics of intravenously administered iopamidol in normal subjects conform to an open two-compartment model with first order elimination (a rapid alpha phase for drug distribution and a slow beta phase for drug elimination). The elimination serum or plasma half-life is approximately two hours; the half-life is not dose dependent. No significant metabolism, deiodination, or biotransformation occurs.

Iopamidol is excreted mainly through the kidneys following intravascular administration. In patients with impaired renal function, the elimination half-life is prolonged dependent upon the degree of impairment. In the absence of renal dysfunction, the cumulative urinary excretion for Iopamidol, expressed as a percentage of administered intravenous dose is approximately 35 to 40 percent at 60 minutes, 80 to 90 percent at 8 hours, and 90 percent or more in the 72- to 96-hour period after administration. In normal subjects, approximately one percent or less of the administered dose appears in cumulative 72- to 96-hour fecal specimens.

Isovue may be visualized in the renal parenchyma within 30-60 seconds following rapid intravenous administration. Opacification of the calyces and pelves in patients with normal renal function becomes apparent within 1 to 3 minutes, with optimum contrast occurring between 5 and 15 minutes. In patients with renal impairment, contrast visualization may be delayed.

Iopamidol displays little tendency to bind to serum or plasma proteins.

No evidence of in vivo complement activation has been found in normal subjects.

Animal studies indicate that iopamidol does not cross the blood-brain barrier to any significant extent following intravascular administration.

Isovue (lopamidol Injection) enhances computed tomographic brain imaging through augmentation of radiographic efficiency. The degree of enhancement of visualization of tissue density is directly related to the iodine content in an administered dose; peak iodine blood levels occur immediately following rapid injection of the dose. These levels fall rapidly within five to ten minutes. This can be accounted for by the dilution in the vascular and extracellular fluid compartments which causes an initial sharp fall in plasma concentration. Equilibration with the extracellular compartments is reached in about ten minutes, thereafter the fall becomes exponential. Maximum contrast enhancement frequently occurs after peak blood iodine levels are reached. The delay in maximum contrast enhancement can range from five to forty minutes depending on the peak iodine levels achieved and the cell type of the lesion. This lag suggests that radiographic contrast enhancement is at least in part dependent on the accumulation of iodine within the lesion and outside the blood pool, although the mechanism by which this occurs is not clear. The radiographic enhancement of nontumoral lesions, such as arteriovenous malformations and aneurysms, is probably dependent on the iodine content of the circulating blood pool.

In CECT head imaging, Isovue (lopamidol Injection) does not accumulate in normal brain tissue due to the presence of the blood-brain barrier. The increase in x-ray absorption in normal brain is due to the presence of contrast agent within the blood pool. A break in the blood-brain barrier such as occurs in malignant tumors of the brain allows the accumulation of the contrast medium within the interstitial tissue of the tumor. Adjacent normal brain tissue does not contain the contrast medium.

In nonneural tissues (during computed tomography of the body), iopamidol diffuses rapidly from the vascular into the extravascular space. Increase in x-ray absorption is related to blood flow, concentration of the contrast medium, and extraction of the contrast medium by interstitial tissue of tumors since no barrier exists. Contrast enhancement is thus due to the relative differences in extravascular diffusion between normal and abnormal tissue, quite different from that in the brain.

The pharmacokinetics of iopamidol in both normal and abnormal tissue have been shown to be variable. Contrast enhancement appears to be greatest soon after administration of the contrast medium, and following intraarterial rather than intravenous administration. Thus, greatest enhancement can be detected by a series of consecutive two- to three-second scans performed just after injection (within 30 to 90 seconds), i.e., dynamic computed tomographic imaging.

Indications and Usage for Isovue

Isovue (lopamidol Injection) is indicated for angiography throughout the cardiovascular system, including cerebral and peripheral arteriography, coronary arteriography and ventriculography, pediatric angiocardiography, selective visceral arteriography and aortography, peripheral venography (phlebography), and adult and pediatric intravenous excretory urography and intravenous adult and pediatric contrast enhancement of computed tomographic (CECT) head and body imaging (see below).

CECT Head Imaging

Isovue may be used to refine diagnostic precision in areas of the brain which may not otherwise have been satisfactorily visualized.

Tumors

Isovue may be useful to investigate the presence and extent of certain malignancies such as: gliomas including malignant gliomas, glioblastomas, astrocytomas, oligodendrogliomas and gangliomas, ependymomas, medulloblastomas, meningiomas, neuromas, pinealomas, pituitary adenomas, craniopharyngiomas, germinomas, and metastatic lesions. The usefulness of contrast enhancement for the investigation of the retrobulbar space and in cases of low grade or infiltrative glioma has not been demonstrated.

In calcified lesions, there is less likelihood of enhancement. Following therapy, tumors may show decreased or no enhancement.

The opacification of the inferior vermis following contrast media administration has resulted in false-positive diagnosis in a number of otherwise normal studies.

Nonneoplastic Conditions

Isovue may be beneficial in the image enhancement of nonneoplastic lesions. Cerebral infarctions of recent onset may be better visualized with contrast enhancement, while some infarctions are obscured if contrast media are used. The use of iodinated contrast media results in contrast enhancement in about 60 percent of cerebral infarctions studied from one to four weeks from the onset of symptoms.

Sites of active infection may also be enhanced following contrast media administration.

Arteriovenous malformations and aneurysms will show contrast enhancement. For these vascular lesions, the enhancement is probably dependent on the iodine content of the circulating blood pool.

Hematomas and intraparenchymal bleeders seldom demonstrate any contrast enhancement. However, in cases of intraparenchymal clot, for which there is no obvious clinical explanation, contrast media administration may be helpful in ruling out the possibility of associated arteriovenous malformation.

CECT Body Imaging

Isovue (lopamidol Injection) may be used for enhancement of computed tomographic images for detection and evaluation of lesions in the liver, pancreas, kidneys, aorta, mediastinum, abdominal cavity, pelvis and retroperitoneal space.

Enhancement of computed tomography with Isovue may be of benefit in establishing diagnoses of certain lesions in these sites with greater assurance than is possible with CT alone, and in supplying additional features of the lesions (e.g., hepatic abscess delineation prior to percutaneous drainage). In other cases, the contrast agent may allow visualization of lesions not seen with CT alone (e.g., tumor extension), or may help to define suspicious lesions seen with unenhanced CT (e.g., pancreatic cyst).

Contrast enhancement appears to be greatest within 60 to 90 seconds after bolus administration of contrast agent. Therefore, utilization of a continuous scanning technique (“dynamic CT scanning”) may improve enhancement and diagnostic assessment of tumor and other lesions such as an abscess, occasionally revealing unsuspected or more extensive disease. For example, a cyst may be distinguished from a vascularized solid lesion when precontrast and enhanced scans are compared; the nonperfused mass shows unchanged x-ray absorption (CT number). A vascularized lesion is characterized by an increase in CT number in the few minutes after a bolus of intravascular contrast agent; it may be malignant, benign, or normal tissue, but would probably not be a cyst, hematoma, or other nonvascular lesion.

Because unenhanced scanning may provide adequate diagnostic information in the individual patient, the decision to employ contrast enhancement, which may be associated with risk and increased radiation exposure, should be based upon a careful evaluation of clinical, other radiological, and unenhanced CT findings.

Contraindications

None.

Warnings

Severe Adverse Events-lnadvertent Intrathecal Administration

Serious adverse reactions have been reported due to the inadvertent intrathecal administration of iodinated contrast media that are not indicated for intrathecal use.

These serious adverse reactions include: death, convulsions, cerebral hemorrhage, coma, paralysis, arachnoiditis, acute renal failure, cardiac arrest, seizures, rhabdomyolysis, hyperthermia, and brain edema. Special attention must be given to insure that this drug product is not inadvertently administered intrathecally.

General

Nonionic iodinated contrast media inhibit blood coagulation, in vitro, less than ionic contrast media. Clotting has been reported when blood remains in contact with syringes containing nonionic contrast media.

Serious, rarely fatal, thromboembolic events causing myocardial infarction and stroke have been reported during angiographic procedures with both ionic and nonionic contrast media. Therefore, meticulous intravascular administration technique is necessary, particularly during angiographic procedures, to minimize thromboembolic events. Numerous factors, including length of procedure, catheter and syringe material, underlying disease state, and concomitant medications may contribute to the development of thromboembolic events. For these reasons, meticulous angiographic techniques are recommended including close attention to guidewire and catheter manipulation, use of manifold systems and/or three way stopcocks, frequent catheter flushing with heparinized saline solutions, and minimizing the length of the procedure. The use of plastic syringes in place of glass syringes has been reported to decrease but not eliminate the likelihood of in vitro clotting.

Caution must be exercised in patients with severely impaired renal function, those with combined renal and hepatic disease, or anuria, particularly when larger or repeat doses are administered.

Radiopaque diagnostic contrast agents are potentially hazardous in patients with multiple myeloma or other paraproteinemia, particularly in those with therapeutically resistant anuria. Myeloma occurs most commonly in persons over age 40. Although neither the contrast agent nor dehydration has been proved separately to be the cause of anuria in myelomatous patients, it has been speculated that the combination of both may be causative. The risk in myelomatous patients is not a contraindication; however, special precautions are required.

Contrast media may promote sickling in individuals who are homozygous for sickle cell disease when injected intravenously or intraarterially.

Administration of radiopaque materials to patients known or suspected of having pheochromocytoma should be performed with extreme caution. If, in the opinion of the physician, the possible benefits of such procedures outweigh the considered risks, the procedures may be performed; however, the amount of radiopaque medium injected should be kept to an absolute minimum. The blood pressure should be assessed throughout the procedure and measures for treatment of a hypertensive crisis should be available. These patients should be monitored very closely during contrast enhanced procedures.

Reports of thyroid storm following the use of iodinated radiopaque diagnostic agents in patients with hyperthyroidism or with an autonomously functioning thyroid nodule suggest that this additional risk be evaluated in such patients before use of any contrast medium.

Precautions

General

Diagnostic procedures which involve the use of any radiopaque agent should be carried out under the direction of personnel with the prerequisite training and with a thorough knowledge of the particular procedure to be performed. Appropriate facilities should be available for coping with any complication of the procedure, as well as for emergency treatment of severe reaction to the contrast agent itself. After parenteral administration of a radiopaque agent, competent personnel and emergency facilities should be available for at least 30 to 60 minutes since severe delayed reactions may occur. Caution should be exercised in hydrating patients with underlying conditions that may be worsened by fluid overload, such as congestive heart failure.

Diabetic nephropathy may predispose to acute renal impairment following intravascular contrast media administration. Acute renal impairment following contrast media administration may precipitate lactic acidosis in patients who are taking biguanides.

The administration of iodinated contrast media may aggravate the symptoms of myasthenia gravis.

Preparatory dehydration is dangerous and may contribute to acute renal failure in patients with advanced vascular disease, diabetic patients, and in susceptible nondiabetic patients (often elderly with preexisting renal disease). Patients should be well hydrated prior to and following iopamidol administration. The possibility of a reaction, including serious, life-threatening, fatal, anaphylactoid or cardiovascular reactions, should always be considered (see ADVERSE REACTIONS). Patients at increased risk include those with a history of a previous reaction to a contrast medium, patients with a known sensitivity to iodine per se, and patients with a known clinical hypersensitivity (bronchial asthma, hay fever, and food allergies). The occurrence of severe idiosyncratic reactions has prompted the use of several pretesting methods. However, pretesting cannot be relied upon to predict severe reactions and may itself be hazardous for the patient. It is suggested that a thorough medical history with emphasis on allergy and hypersensitivity, prior to the injection of any contrast medium, may be more accurate than pretesting in predicting potential adverse reactions. A positive history of allergies or hypersensitivity does not arbitrarily contraindicate the use of a contrast agent where a diagnostic procedure is thought essential, but caution should be exercised. Premedication with antihistamines or corticosteroids to avoid or minimize possible allergic reactions in such patients should be considered. Recent reports indicate that such pretreatment does not prevent serious life-threatening reactions but may reduce both their incidence and severity.

Pre-existing conditions, such as pacemakers or cardiac medications, specifically beta-blockers, may mask or alter the signs or symptoms of an anaphylactoid reaction, as well as masking or altering the response to particular medications used for treatment. For example, beta-blockers inhibit a tachycardiac response, and can lead to the incorrect diagnosis of a vasovagal rather than an anaphylactoid reaction. Special attention to this possibility is particularly critical in patients suffering from serious, life-threatening reactions.

General anesthesia may be indicated in the performance of some procedures in selected patients; however, a higher incidence of adverse reactions has been reported with radiopaque media in anesthetized patients, which may be attributable to the inability of the patient to identify untoward symptoms, or to the hypotensive effect of anesthesia which can reduce cardiac output and increase the duration of exposure to the contrast agent.

Even though the osmolality of iopamidol is low compared to diatrizoate or iothalamate based ionic agents of comparable iodine concentration, the potential transitory increase in the circulatory osmotic load in patients with congestive heart failure requires caution during injection. These patients should be observed for several hours following the procedure to detect delayed hemodynamic disturbances. Injection site pain and swelling may occur. In the majority of cases it is due to extravasation of contrast medium. Reactions are usually transient and recover without sequelae. However, inflammation and even skin necrosis have been seen on very rare occasions.

In angiographic procedures, the possibility of dislodging plaques or damaging or perforating the vessel wall, or inducing vasospasm, and or subsequent ischemic events, should be borne in mind during catheter manipulations and contrast medium injection. Test injections to ensure proper catheter placement are suggested.

Selective coronary arteriography should be performed only in selected patients and those in whom the expected benefits outweigh the procedural risk. The inherent risks of angiocardiography in patients with pulmonary hypertension must be weighed against the necessity for performing this procedure. Angiography should be avoided whenever possible in patients with homocystinuria, because of the risk of inducing thrombosis and embolism. See also Pediatric Use.

In addition to the general precautions previously described, special care is required when venography is performed in patients with suspected thrombosis, phlebitis, severe ischemic disease, local infection or a totally obstructed venous system. Extreme caution during injection of contrast media is necessary to avoid extravasation and fluoroscopy is recommended. This is especially important in patients with severe arterial or venous disease.

Information for Patients

Patients receiving injectable radiopaque diagnostic agents should be instructed to:

  1. Inform your physician if you are pregnant.
  2. Inform your physician if you are diabetic or if you have multiple myeloma, pheochromocytoma, homozygous sickle cell disease, or known thyroid disorder (see WARNINGS).
  3. Inform your physician if you are allergic to any drugs, food, or if you had any reactions to previous injections of substances used for x-ray procedures (see PRECAUTIONS-General).
  4. Inform your physician about any other medications you are currently taking, including nonprescription drugs, before you have this procedure.

Drug Interactions

Renal toxicity has been reported in a few patients with liver dysfunction who were given oral cholecystographic agents followed by intravascular contrast agents. Administration of intravascular agents should therefore be postponed in any patient with a known or suspected hepatic or biliary disorder who has recently received a cholecystographic contrast agent.

Other drugs should not be admixed with iopamidol.

Drug/Laboratory Test Interactions

The results of PBI and radioactive iodine uptake studies, which depend on iodine estimations, will not accurately reflect thyroid function for up to 16 days following administration of iodinated contrast media. However, thyroid function tests not depending on iodine estimations, e.g., T3 resin uptake and total or free thyroxine (T4) assays are not affected.

Any test which might be affected by contrast media should be performed prior to administration of the contrast medium.

Laboratory Test Findings

In vitro studies with animal blood showed that many radiopaque contrast agents, including iopamidol, produced a slight depression of plasma coagulation factors including prothrombin time, partial thromboplastin time, and fibrinogen, as well as a slight tendency to cause platelet and/or red blood cell aggregation (see PRECAUTIONS-General).

Transitory changes may occur in red cell and leucocyte counts, serum calcium, serum creatinine, serum glutamic oxaloacetic transaminase (SGOT), and uric acid in urine; transient albuminuria may occur.

These findings have not been associated with clinical manifestations.

Carcinogenesis, Mutagenesis, Impairment of Fertility

Long-term studies in animals have not been performed to evaluate carcinogenic potential. No evidence of genetic toxicity was obtained in in vitro tests.

Pregnancy: Teratogenic Effects

Pregnancy Category B Reproduction studies have been performed in rats and rabbits at doses up to 2.7 and 1.4 times the maximum recommended human dose (1.48 gl/kg in a 50 kg individual), respectively, and have revealed no evidence of impaired fertility or harm to the fetus due to iopamidol. There are, however, no adequate and well-controlled studies in pregnant women. Because animal reproduction studies are not always predictive of human response, this drug should be used during pregnancy only if clearly needed.

Nursing Mothers

It is not known whether this drug is excreted in human milk. Because many drugs are excreted in human milk, caution should be exercised when iopamidol is administered to a nursing woman.

Pediatric Use

Safety and effectiveness in children has been established in pediatric angiocardiography, computed tomography (head and body) and excretory urography. Pediatric patients at higher risk of experiencing adverse events during contrast medium administration may include those having asthma, a sensitivity to medication and/or allergens, cyanotic heart disease, congestive heart failure, a serum creatinine greater than 1.5 mg/dL or those less than 12 months of age.

Adverse Reactions

Adverse reactions following the use of iopamidol are usually mild to moderate, self-limited, and transient.

In angiocardiography (597 patients), the adverse reactions with an estimated incidence of one percent or higher are: hot flashes 3.4%; angina pectoris 3.0%; flushing 1.8%; bradycardia 1.3%; hypotension 1.0%; hives 1.0%.

In a clinical trial with 76 pediatric patients undergoing angiocardiography, 2 adverse reactions (2.6%) both remotely attributed to the contrast media were reported. Both patients were less than 2 years of age, both had cyanotic heart disease with underlying right ventricular abnormalities and abnormal pulmonary circulation. In one patient preexisting cyanosis was transiently intensified following contrast media administration. In the second patient preexisting decreased peripheral perfusion was intensified for 24 hours following the examination. (See “PRECAUTIONS” Section for information on high risk nature of these patients.)

Intravascular injection of contrast media is frequently associated with the sensation of warmth and pain especially in peripheral arteriography and venography; pain and warmth are less frequent and less severe with Isovue (lopamidol Injection) than with diatrizoate meglumine and diatrizoate sodium injection.

The following table of incidence of reactions is based on clinical studies with Isovue in about 2246 patients.

Adverse Reactions
  Estimated Overall Incidence
System > 1% ≤ 1%
Cardiovascular none tachycardia
hypotension
hypertension
myocardial ischemia
circulatory collapse
S-T segment depression
bigeminy
extrasystoles
ventricular fibrillation
angina pectoris
bradycardia
transient ischemic attack
thrombophlebitis
Nervous pain (2.8%)
burning sensation (1.4%)
vasovagal reaction
tingling in arms
grimace
faintness
Digestive nausea (1.2%) vomiting
anorexia
Respiratory none throat constriction
dyspnea
pulmonary edema
Skin and Appendages none rash
urticaria
pruritus
flushing
Body as a Whole hot flashes (1.5%) headache
fever
chills
excessive sweating
back spasm
Special Senses warmth (1.1%) taste alterations
nasal congestion
visual disturbances
Urogenital none urinary retention

Regardless of the contrast agent employed, the overall estimated incidence of serious adverse reactions is higher with coronary arteriography than with other procedures. Cardiac decompensation, serious arrhythmias, or myocardial ischemia or infarction have been reported with Isovue and may occur during coronary arteriography and left ventriculography.

Following coronary and ventricular injections, certain electrocardiographic changes (increased QTc, increased R-R, T-wave amplitude) and certain hemodynamic changes (decreased systolic pressure) occurred less frequently with Isovue (lopamidol Injection) than with diatrizoate meglumine and diatrizoate sodium injection; increased LVEDP occurred less frequently after ventricular iopamidol injections.

In aortography, the risks of procedures also include injury to the aorta and neighboring organs, pleural puncture, renal damage including infarction and acute tabular necrosis with oliguria and anuria, accidental selective filling of the right renal artery during the translumbar procedure in the presence of preexisting renal disease, retroperitoneal hemorrhage from the translumbar approach, and spinal cord injury and pathology associated with the syndrome of transverse myelitis.

The following adverse reactions have been reported for lopamidol: Cardiovascular: arrhythmia, arterial spasms, flushing, vasodilation, chest pain, cardiopulmonary arrest; Nervous: confusion, paresthesia, dizziness, temporary cortical blindness, temporary amnesia, convulsions, paralysis, coma; Respiratory: increased cough, sneezing, asthma, apnea, laryngeal edema, chest tightness, rhinitis; Skin and Appendages: injection site pain usually due to extravasation and/or erythematous swelling, pallor, periorbital edema, facial edema; Urogenital: pain, hematuria; Special Senses: watery itchy eyes, lacrimation, conjunctivitis; Musculoskeletal: muscle spasm, involuntary leg movement; Body as a whole: tremors, malaise, anaphylactoid reaction (characterized by cardiovascular, respiratory and cutaneous symptoms), pain; Digestive: severe retching and choking, abdominal cramps. Some of these may occur as a consequence of the procedure. Other reactions may also occur with the use of any contrast agent as a consequence of the procedural hazard; these include hemorrhage or pseudoaneurysms at the puncture site, brachial plexus palsy following axillary artery injections, chest pain, myocardial infarction, and transient changes in hepatorenal chemistry tests. Arterial thrombosis, displacement of arterial plaques, venous thrombosis, dissection of the coronary vessels and transient sinus arrest are rare complications.

General Adverse Reactions To Contrast Media

Reactions known to occur with parenteral administration of iodinated ionic contrast agents (see the listing below) are possible with any nonionic agent. Approximately 95 percent of adverse reactions accompanying the use of other water-soluble intravascularly administered contrast agents are mild to moderate in degree. However, life-threatening reactions and fatalities, mostly of cardiovascular origin, have occurred. Reported incidences of death from the administration of other iodinated contrast media range from 6.6 per 1 million (0.00066 percent) to 1 in 10,000 patients (0.01 percent). Most deaths occur during injection or 5 to 10 minutes later, the main feature being cardiac arrest with cardiovascular disease as the main aggravating factor. Isolated reports of hypotensive collapse and shock are found in the literature. The incidence of shock is estimated to be 1 out of 20,000 (0.005 percent) patients.

Adverse reactions to injectable contrast media fall into two categories: chemotoxic reactions and idiosyncratic reactions. Chemotoxic reactions result from the physicochemical properties of the contrast medium, the dose, and the speed of injection. All hemodynamic disturbances and injuries to organs or vessels perfused by the contrast medium are included in this category.

Experience with iopamidol suggests there is much less discomfort (e.g. pain and/or warmth) with peripheral arteriography. Fewer changes are noted in ventricular function after ventriculography and coronary arteriography.

Idiosyncratic reactions include all other reactions. They occur more frequently in patients 20 to 40 years old. Idiosyncratic reactions may or may not be dependent on the amount of drug injected, the speed of injection, the mode of injection, and the radiographic procedure.

Idiosyncratic reactions are subdivided into minor, intermediate, and severe. The minor reactions are self-limited and of short duration; the severe reactions are life-threatening and treatment is urgent and mandatory.

The reported incidence of adverse reactions to contrast media in patients with a history of allergy is twice that for the general population. Patients with a history of previous reactions to a contrast medium are three times more susceptible than other patients. However, sensitivity to contrast media does not appear to increase with repeated examinations. Most adverse reactions to intravascular contrast agents appear within one to three minutes after the start of injection, but delayed reactions may occur. Delayed reactions, usually involving the skin, may uncommonly occur within 2-3 days (range 1-7 days) after the administration of contrast (see PRECAUTIONS-General). Delayed allergic reactions are more frequent in patients treated with immunostimulants, such as interleukin-2.

In addition to the adverse drug reactions reported for iopamidol, the following additional adverse reactions have been reported with the use of other intravascular contrast agents and are possible with the use of any water-soluble iodinated contrast agent:

Cardiovascular: cerebral hematomas, petechiae; Hematologic: neutropenia; Skin and Appendages: skin necrosis; Urogenital: osmotic nephrosis of proximal tubular cells, renal failure; Special Senses: conjunctival chemosis with infection.

Overdosage

Treatment of an overdose of an injectable radiopaque contrast medium is directed toward the support of all vital functions, and prompt institution of symptomatic therapy.

Isovue Dosage and Administration

General

Parenteral drug products should be inspected visually for particulate matter and discoloration prior to administration, whenever solution and container permit. Iopamidol solutions should be used only if clear and within the normal colorless to pale yellow range. Discard any product which shows signs of crystallization or damage to the container-closure system, which includes the glass container, stopper and/or crimp.

It is desirable that solutions of radiopaque diagnostic agents for intravascular use be at body temperature when injected. Withdrawal of contrast agents from their containers should be accomplished under aseptic conditions with sterile syringes. Sterile techniques must be used with any intravascular injection, and with catheters and guidewires.

Patients should be well hydrated prior to and following Isovue (lopamidol Injection) administration.

As with all radiopaque contrast agents, only the lowest dose of Isovue necessary to obtain adequate visualization should be used. A lower dose reduces the possibility of an adverse reaction. Most procedures do not require use of either a maximum dose or the highest available concentration of Isovue; the combination of dose and Isovue concentration to be used should be carefully individualized, and factors such as age, body size, size of the vessel and its blood flow rate, anticipated pathology and degree and extent of opacification required, structure(s) or area to be examined, disease processes affecting the patient, and equipment and technique to be employed should be considered.

Cerebral Arteriography

Isovue-300 (lopamidol Injection, 300 mgl/mL) should be used. The usual individual injection by carotid puncture or transfemoral catheterization is 8 to 12 mL, with total multiple doses ranging to 90 mL.

Peripheral Arteriograghy

Isovue-300 usually provides adequate visualization. For injection into the femoral artery or subclavian artery, 5 to 40 mL may be used; for injection into the aorta for a distal runoff, 25 to 50 mL may be used. Doses up to a total of 250 mL of Isovue-300 have been administered during peripheral arteriography.

Peripheral Venography (Phlebography)

Isovue-200 (lopamidol Injection, 200 mgl/mL) should be used. The usual dose is 25 to 150 mL per lower extremity. The combined total dose for multiple injections has not exceeded 350 mL.

Selective Visceral Arteriography and Aortography

Isovue-370 (lopamidol Injection, 370 mgl/mL) should be used. Doses up to 50 mL may be required for injection into the larger vessels such as the aorta or celiac artery; doses up to 10 mL may be required for injection into the renal arteries. Often, lower doses will be sufficient. The combined total dose for multiple injections has not exceeded 225 mL.

Pediatric Angiocardiography

Isovue-370 should be used. Pediatric angiocardiography may be performed by injection into a large peripheral vein or by direct catheterization of the heart.

The usual dose range for single injections is provided in the following table:

Single Injection
Usual Dose Range
Age mL
< 2 years 10-15
2-9 years 15-30
10-18 years 20-50

The usual recommended dose for cumulative injections is provided in the following table:

Cumulative Injection
Usual Recommended Dose
Age mL
< 2 years 40
2-4 years 50
5-9 years 100
10-18 years 125

Coronary Arteriography and Ventriculography

Isovue-370 should be used. The usual dose for selective coronary artery injections is 2 to 10 mL. The usual dose for ventriculography, or for nonselective opacification of multiple coronary arteries following injection at the aortic root is 25 to 50 mL. The total dose for combined procedures has not exceeded 200 mL. EKG monitoring is essential.

Excretory Urography

Isovue-250 Isovue-300 or Isovue-370 may be used. The usual adult dose for Isovue-250 is 50 to 100 mL, for Isovue-300 is 50 mL and for Isovue-370 is 40 mL administered by rapid intravenous injection.

Pediatric Excretory Urography

Isovue-250 or Isovue-300 may be used. The dosage recommended for use in children for excretory urography is 1.2 mL/kg to 3.6 mL/kg for Isovue-250 and 1.0 mL/kg to 3.0 mL/kg for Isovue-300. It should not be necessary to exceed a total dose of 30 grams of iodine.

Computed Tomography

Isovue-250 or Isovue-300 may be used.

CECT OF THE HEAD: The suggested dose for Isovue-250 is 130 to 240 mL and for Isovue-300 is 100 to 200 mL by intravenous administration. Imaging may be performed immediately after completion of administration.

CECT OF THE BODY: The usual adult dose range for Isovue-250 is 130 to 240 mL and for Isovue-300 is 100 to 200 mL administered by rapid intravenous infusion or bolus injection. Equivalent doses of Isovue-370 based on organically bound iodine content may also be used. The total dose for either CECT procedure should not exceed 60 grams of iodine.

Pediatric Computed Tomography

Isovue-250 or Isovue-300 may be used. The dosage recommended for use in children for contrast enhanced computed tomography is 1.2 mL/kg to 3.6 mL/kg for Isovue-250 and 1.0 mL/kg to 3.0 mL/kg for Isovue-300. It should not be necessary to exceed a total dose of 30 grams of iodine.

Drug Incompatibilities

Many radiopaque contrast agents are incompatible in vitro with some antihistamines and many other drugs; therefore, no other pharmaceuticals should be admixed with contrast agents.

How is Isovue Supplied

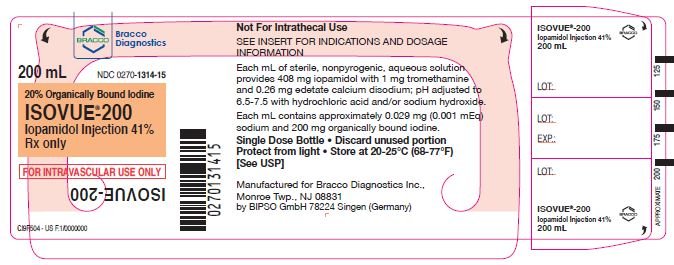

Isovue-200 (lopamidol Injection 41%)
   Ten 50 mL single dose vials (NDC 0270-1314-30)

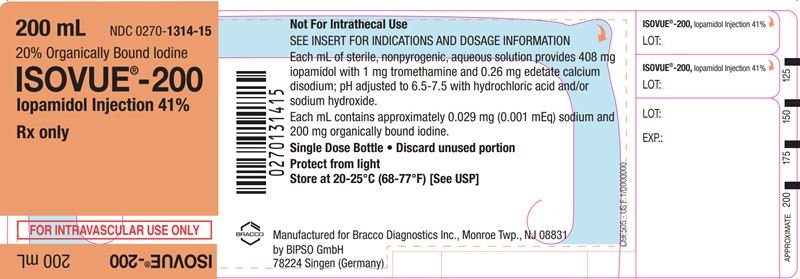

   Ten 200 mL single dose bottles (NDC 0270-1314-15)

Isovue-250 (lopamidol Injection 51%)
   Ten 50 mL single dose vials (NDC 0270-1317-05)

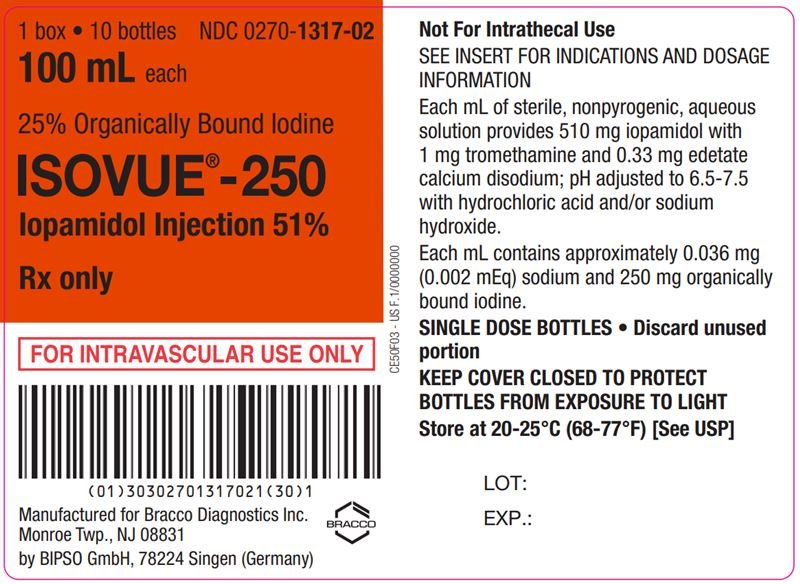

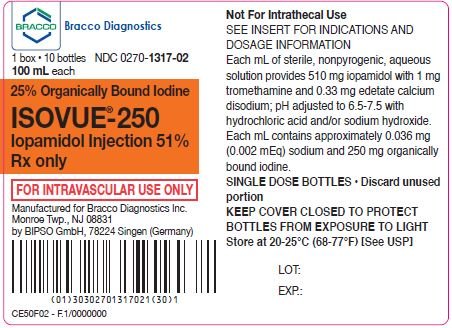

   Ten 100 mL single dose bottles (NDC 0270-1317-02)
   Ten 150 mL single dose bottles (NDC 0270-1317-09)

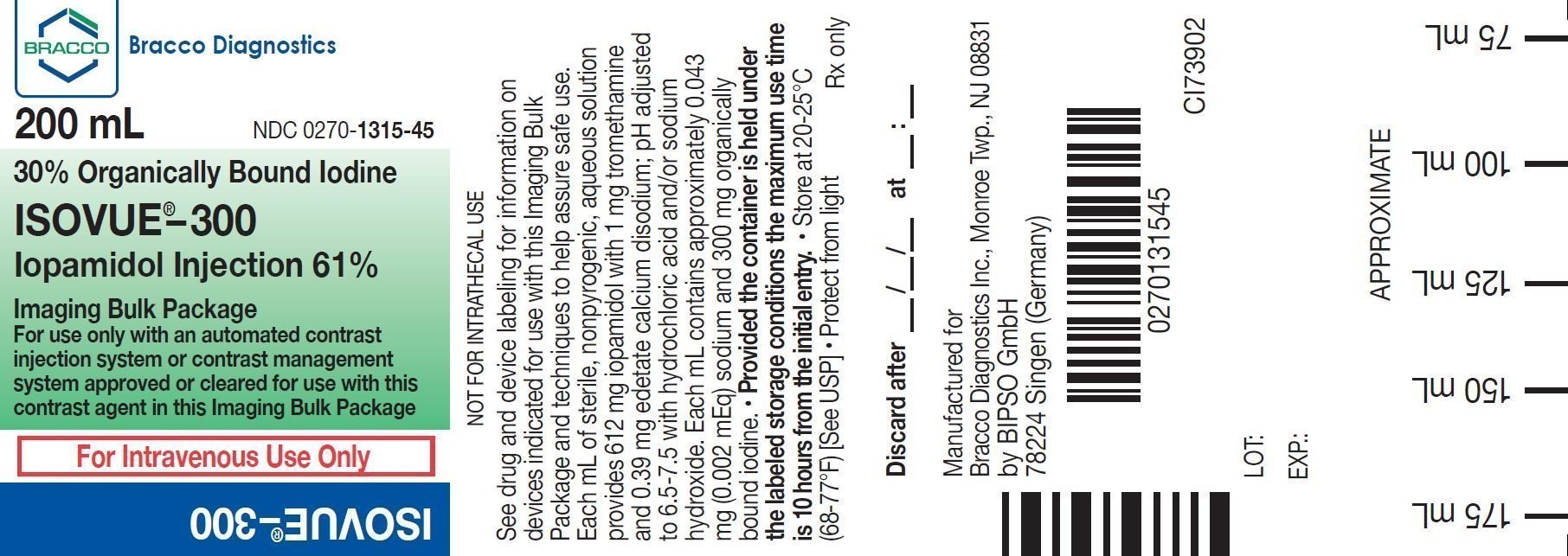

Isovue-300 (lopamidol Injection 61%)
   Ten 30 mL single dose vials (NDC 0270-1315-25)
   Ten 50 mL single dose vials (NDC 0270-1315-30)
   Ten 75 mL single dose bottles (NDC 0270-1315-47)

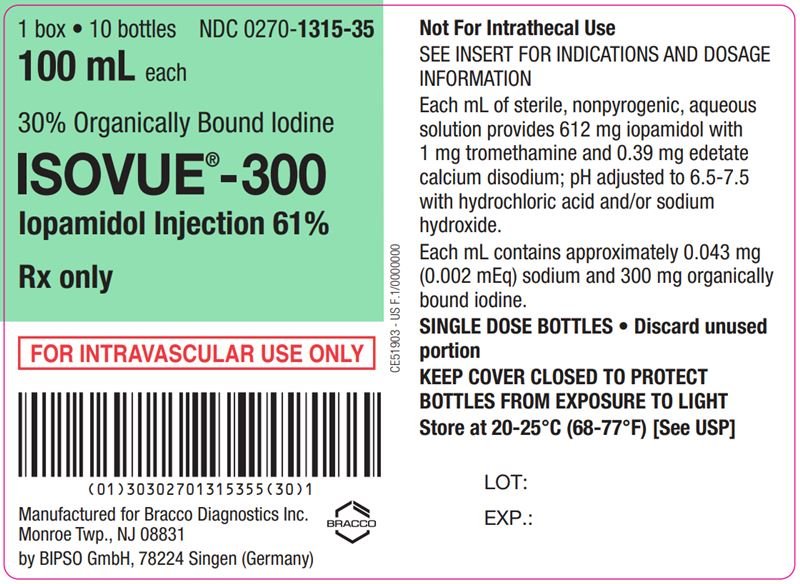

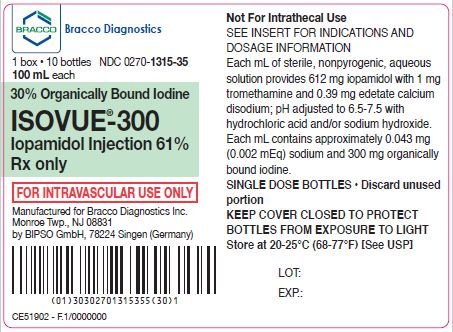

   Ten 100 mL single dose bottles (NDC 0270-1315-35)
   Ten 150 mL single dose bottles (NDC 0270-1315-50)

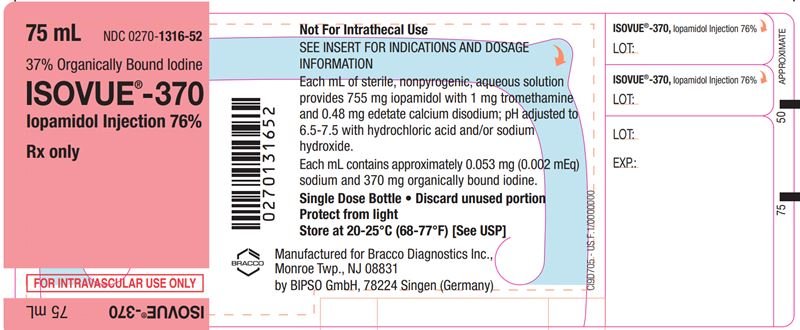

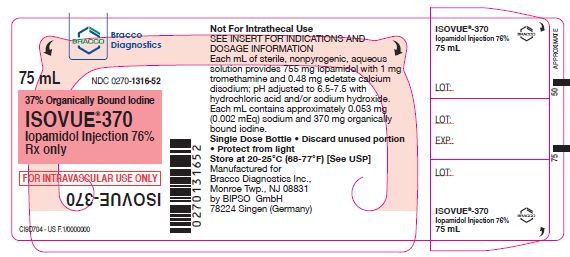

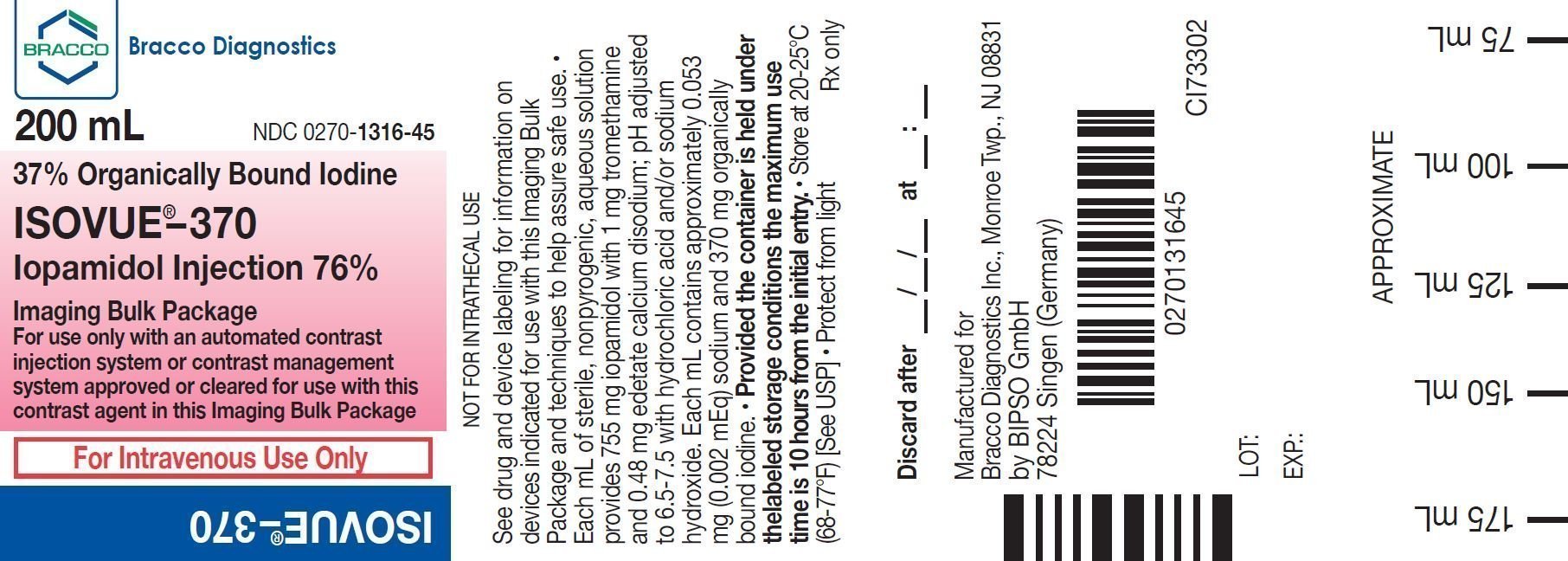

Isovue-370 (lopamidol Injection 76%)
   Ten 50 mL single dose vials (NDC 0270-1316-30)
   Ten 50 mL single dose bottles (NDC 0270-1316-01)
   Ten 75 mL single dose bottles (NDC 0270-1316-52)
   Ten 100 mL single dose bottles (NDC 0270-1316-35)
   Ten 125 mL single dose bottles (NDC 0270-1316-04)
   Ten 150 mL single dose bottles (NDC 0270-1316-37)

Storage

Store at 20-25° C (68-77° F). [See USP]. Protect from light.

Also Available

lopamidol Injection is also available as Isovue-M® for intrathecal administration.

Manufactured for
Bracco Diagnostics Inc. - Monroe Township, NJ 08831

by BIPSO GmbH
78224 Singen (Germany)

Revised March 2013



Isovue 200: 50mL vial label
NDC 0270-1314-30



Isovue 250: 10x 50mL Box label
NDC 0270-1317-05



Isovue 300: 50mL Vial label
NDC 0270-1315-30



Isovue 370: 150mL Bottle label
NDC 0270-1316-37

Isovue  300
iopamidol injection, solution
Product Information
Product Type HUMAN PRESCRIPTION DRUG LABEL Item Code (Source) NDC:0270-1315
Route of Administration INTRAVASCULAR DEA Schedule
Active Ingredient/Active Moiety
Ingredient Name Basis of Strength Strength
IOPAMIDOL (IOPAMIDOL) IOPAMIDOL 612 mg  in 1 mL
Inactive Ingredients
Ingredient Name Strength
TROMETHAMINE 1 mg  in 1 mL
EDETATE CALCIUM DISODIUM 0.39 mg  in 1 mL
Packaging
# Item Code Package Description
1 NDC:0270-1315-47 10 BOTTLE in 1 BOX
1 75 mL in 1 BOTTLE
2 NDC:0270-1315-35 10 BOTTLE in 1 BOX
2 100 mL in 1 BOTTLE
3 NDC:0270-1315-50 10 BOTTLE in 1 BOX
3 150 mL in 1 BOTTLE
4 NDC:0270-1315-25 10 VIAL, SINGLE-DOSE in 1 BOX
4 30 mL in 1 VIAL, SINGLE-DOSE
5 NDC:0270-1315-30 10 VIAL, SINGLE-DOSE in 1 BOX
5 50 mL in 1 VIAL, SINGLE-DOSE
Marketing Information
Marketing Category Application Number or Monograph Citation Marketing Start Date Marketing End Date
NDA NDA018735 10/12/1994
Isovue  370
iopamidol injection, solution
Product Information
Product Type HUMAN PRESCRIPTION DRUG LABEL Item Code (Source) NDC:0270-1316
Route of Administration INTRAVASCULAR DEA Schedule
Active Ingredient/Active Moiety
Ingredient Name Basis of Strength Strength
IOPAMIDOL (IOPAMIDOL) IOPAMIDOL 755 mg  in 1 mL
Inactive Ingredients
Ingredient Name Strength
TROMETHAMINE 1 mg  in 1 mL
EDETATE CALCIUM DISODIUM 0.48 mg  in 1 mL
Packaging
# Item Code Package Description
1 NDC:0270-1316-01 10 BOTTLE in 1 BOX
1 50 mL in 1 BOTTLE
2 NDC:0270-1316-52 10 BOTTLE in 1 BOX
2 75 mL in 1 BOTTLE
3 NDC:0270-1316-35 10 BOTTLE in 1 BOX
3 100 mL in 1 BOTTLE
4 NDC:0270-1316-04 10 BOTTLE in 1 BOX
4 125 mL in 1 BOTTLE
5 NDC:0270-1316-37 10 BOTTLE in 1 BOX
5 150 mL in 1 BOTTLE
6 NDC:0270-1316-30 10 VIAL in 1 BOX
6 50 mL in 1 VIAL
Marketing Information
Marketing Category Application Number or Monograph Citation Marketing Start Date Marketing End Date
NDA NDA018735 10/12/1994
Isovue  200
iopamidol injection, solution
Product Information
Product Type HUMAN PRESCRIPTION DRUG LABEL Item Code (Source) NDC:0270-1314
Route of Administration INTRAVASCULAR DEA Schedule
Active Ingredient/Active Moiety
Ingredient Name Basis of Strength Strength
IOPAMIDOL (IOPAMIDOL) IOPAMIDOL 408 mg  in 1 mL
Inactive Ingredients
Ingredient Name Strength
TROMETHAMINE 1 mg  in 1 mL
EDETATE CALCIUM DISODIUM 0.26 mg  in 1 mL
Packaging
# Item Code Package Description
1 NDC:0270-1314-30 10 VIAL, SINGLE-DOSE in 1 BOX
1 50 mL in 1 VIAL, SINGLE-DOSE
2 NDC:0270-1314-15 10 BOTTLE in 1 BOX
2 200 mL in 1 BOTTLE
Marketing Information
Marketing Category Application Number or Monograph Citation Marketing Start Date Marketing End Date
NDA NDA018735 10/12/1994
Isovue  250
iopamidol injection, solution
Product Information
Product Type HUMAN PRESCRIPTION DRUG LABEL Item Code (Source) NDC:0270-1317
Route of Administration INTRAVASCULAR DEA Schedule
Active Ingredient/Active Moiety
Ingredient Name Basis of Strength Strength
IOPAMIDOL (IOPAMIDOL) IOPAMIDOL 510 mg  in 1 mL
Inactive Ingredients
Ingredient Name Strength
TROMETHAMINE 1 mg  in 1 mL
EDETATE CALCIUM DISODIUM 0.33 mg  in 1 mL
Packaging
# Item Code Package Description
1 NDC:0270-1317-05 10 VIAL, SINGLE-DOSE in 1 BOX
1 50 mL in 1 VIAL, SINGLE-DOSE
2 NDC:0270-1317-02 10 BOTTLE in 1 BOX
2 100 mL in 1 BOTTLE
3 NDC:0270-1317-09 10 BOTTLE in 1 BOX
3 150 mL in 1 BOTTLE
Marketing Information
Marketing Category Application Number or Monograph Citation Marketing Start Date Marketing End Date
NDA NDA018735 10/12/1994
Labeler - BRACCO DIAGNOSTICS INC (849234661)
Registrant - BRACCO DIAGNOSTICS INC (849234661)
Establishment
Name Address ID/FEI Operations
BRACCO IMAGING SPA 543024777 API MANUFACTURE(0270-1314, 0270-1317, 0270-1316, 0270-1315)
Establishment
Name Address ID/FEI Operations
BIPSO GmbH 342104149 MANUFACTURE(0270-1316, 0270-1315, 0270-1317, 0270-1314)
Establishment
Name Address ID/FEI Operations
Patheon Italia S.p.A 434078638 MANUFACTURE(0270-1316, 0270-1315, 0270-1317, 0270-1314), ANALYSIS(0270-1316, 0270-1314, 0270-1317, 0270-1315)
Establishment
Name Address ID/FEI Operations
Nycomed GmbH 313042392 ANALYSIS(0270-1316, 0270-1314, 0270-1317, 0270-1315)
Revised: 07/2013

BRACCO DIAGNOSTICS INC
Hide
(web3)
