EZ-OX Plus

Pronunciation

Generic Name: oxygen
Dosage Form: gas

EZ-OX Plus Instructions and Flow Charts Compressed Oxygen USP

WARNING: DO NOT HANDLE CYLINDER OR USE CONTENTS UNTIL: 1) YOU HAVE READ AND UNDERSTAND THE MATERIAL SAFETY DATA SHEET FOR THIS PRODUCT. CALL 1-800-231-1366 FOR MORE COPIES. 2) YOU ARE TRAINED TO USE CYLINDER AND CONTENTS, INCLUDING EMERGENCY PROCEDURES.

OXYGEN COMPRESSED USP  UN 1072   Rx ONLY   M62AH-1

AIR LIQUIDE HEALTHCARE AMERICA CORP.
P.O. BOX 460229
Houston, TX 7056

WARNING: CYLINDER WITH HIGH PRESSURE OXIDIZING GAS, VIGOROUSLY ACCELERATES COMBUSTION.  Secure cylinder and provide adequate ventilation in storage and use.  Keep oil and grease away.  No smoking in cylinder area.  Do not use or store near heat or open flame.  Keep out of reach of children.  Use only with equipment cleaned for oxygen service and rated for cylinder pressure.  Cylinder temperature should not exceed 125°F(52°C).  Use in accordance with Material Safety Data Sheet and CGA Publication p-1.  WARNING: For emergency use only when administered by properly trained personnel for oxygen deficiency and resuscitation.  For all other medical applications Rx ONLY.  Uninterrupted use of high concentrations of oxygen over a long duration without monitoring its effect on oxygen content of arterial blood, may be harmful.  Use only with pressure reducing equipment and apparatus designed for oxygen.  Do not attempt to use on patients who have stopped breathing unless used in conjunction with resuscitating equipment.  CAUTION: Federal law prohibits dispensing without prescription.  Federal law requires that this container be refilled with Oxygen USP only by establishments registered as a drug producer in accordance with the Federal Food, Drug, and Cosmetic Act.  Produced by Air Liquefaction.  CAUTION: USE NO OIL ON VALVE OR CONNECTIONS.  DO NOT REMOVE THIS EZ-OX PRODUCT LABEL.

EZ-OX Plus™

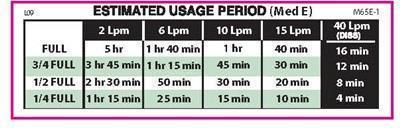

ESTIMATED USAGE PERIOD

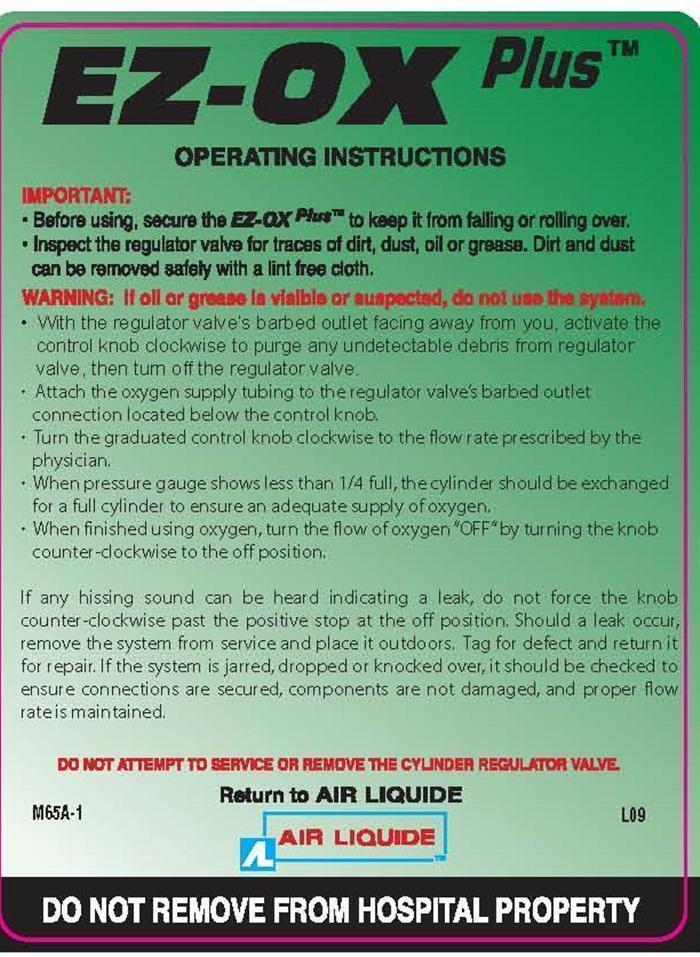

OPERATING INSTRUCTIONS

IMPORTANT: For safety, always turn oxygen systems on slowly.
Before using, secure the EZ-OX Plus™ to keep it from falling or rolling over.
Inspect the regulator valve for traces of dirt, dust, oil or grease. Dirt and dust can be removed safely with a lint free cloth.

WARNING: If oil or grease is visible or suspected, do not use the system.

With the regulator valve outlet facing away from you, activate the control knob clockwise to purge any undetectable debris from the regulator valve, then turn off the regulator valve.
Attach the oxygen supply tubing to the regulator valves barbed outlet connection located inside the housing access hole on the right side.
Turn the graduated knob clockwise to the flow rate prescribed by the physician.
When pressure gauge shows less than 1/4 full, the cylinder should be exchanged with a full cylinder to ensure an adequate supply of oxygen.
When finished using oxygen, turn the flow of oxygen "OFF" by turning the knob counter-clockwise to the off position.

Slideshow: HealthQuiz: Basics About Stroke Signs and Symptoms

If any hissing sound can be heard indicating a leak, do not force the knob counter-clock wise past the positive stop at the off position. Should a leak occur, remove the system from service and place it outdoors. Tag for defect and return it for repair. If the system is jarred, dropped or knocked over, it should be checked to ensure connections are secured, components are not damaged and proper flow rate is maintained.

DO NOT ATTEMPT TO SERVICE OR REMOVE THE CYLINDER REGULATOR VALVE.
Return to AIR LIIQUIDE HEALTHCARE AMERICA CORP.

M65A-1   L09

DO NOT REMOVE FROM HOSPITAL PROPERTY

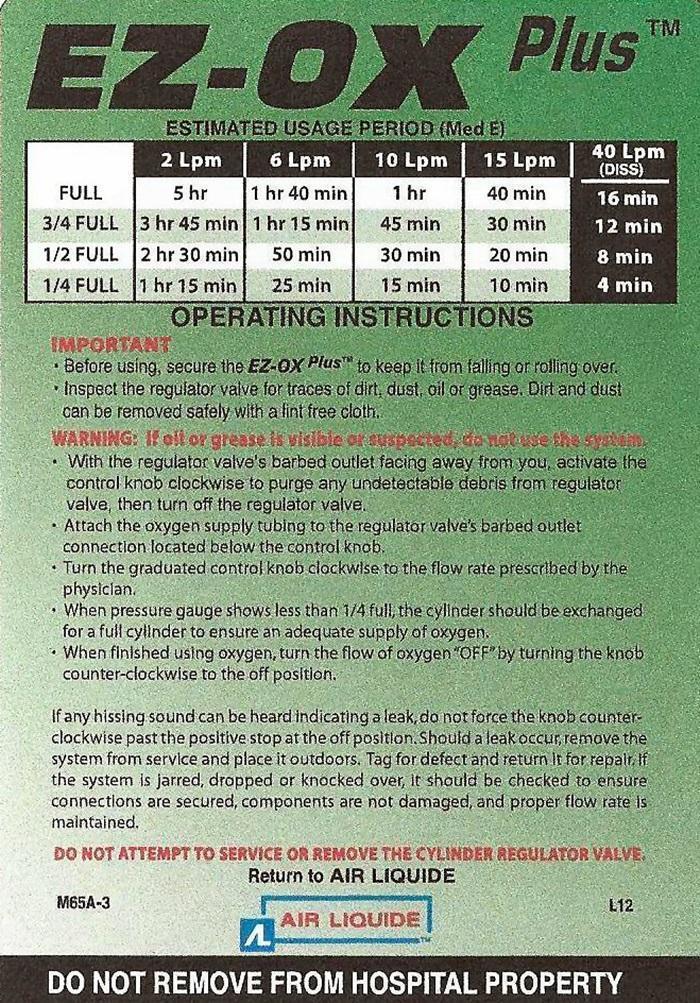

EZ-OX Updated Label and Flow Charts


EZ-OX Plus™

ESTIMATED USAGE PERIOD

OPERATING INSTRUCTIONS


IMPORTANT: For safety, always turn oxygen systems on slowly.
Before using, secure the EZ-OX Plus™ to keep it from falling or rolling over.
Inspect the regulator valve for traces of dirt, dust, oil or grease. Dirt and dust can be removed safely with a lint free cloth.

WARNING: If oil or grease is visible or suspected, do not use the system.

With the regulator valve outlet facing away from you, activate the control knob clockwise to purge any undetectable debris from the regulator valve, then turn off the regulator valve.
Attach the oxygen supply tubing to the regulator valves barbed outlet connection located inside the housing access hole on the right side.
Turn the graduated knob clockwise to the flow rate prescribed by the physician.
When pressure gauge shows less than 1/4 full, the cylinder should be exchanged with a full cylinder to ensure an adequate supply of oxygen.
When finished using oxygen, turn the flow of oxygen "OFF" by turning the knob counter-clockwise to the off position.

If any hissing sound can be heard indicating a leak, do not force the knob counter-clock wise past the positive stop at the off position. Should a leak occur, remove the system from service and place it outdoors. Tag for defect and return it for repair. If the system is jarred, dropped or knocked over, it should be checked to ensure connections are secured, components are not damaged and proper flow rate is maintained.

DO NOT ATTEMPT TO SERVICE OR REMOVE THE CYLINDER REGULATOR VALVE.
Return to AIR LIIQUIDE HEALTHCARE AMERICA CORP.

M65H-1   JO5

DO NOT REMOVE FROM HOSPITAL PROPERTY

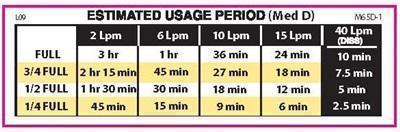

FLOW CHART D

FLOW CHART E

EZ-OX Plus
oxygen gas
Product Information
Product Type HUMAN PRESCRIPTION DRUG LABEL Item Code (Source) NDC:64735-101
Route of Administration RESPIRATORY (INHALATION) DEA Schedule
Active Ingredient/Active Moiety
Ingredient Name Basis of Strength Strength
OXYGEN (OXYGEN) OXYGEN 99 L  in 100 L
Packaging
# Item Code Package Description
1 NDC:64735-101-04 708 L in 1 CYLINDER
Marketing Information
Marketing Category Application Number or Monograph Citation Marketing Start Date Marketing End Date
NDA NDA205712 01/01/1960
Labeler - Air Liquide Healthcare America Corporation (087757167)
Registrant - Air Liquide Healthcare America Corporation (087757167)
Establishment
Name Address ID/FEI Operations
Air Liquide Healthcare America Corporation 067631762 manufacture(64735-101)
Establishment
Name Address ID/FEI Operations
Air Liquide Healthcare America Corporation 026523431 manufacture(64735-101)
Establishment
Name Address ID/FEI Operations
Air Liquide Healthcare America Corporation 023215130 manufacture(64735-101)
Establishment
Name Address ID/FEI Operations
Air Liquide Healthcare America Corporation 808357268 manufacture(64735-101)
Establishment
Name Address ID/FEI Operations
Air Liquide Healthcare America Corporation 963593863 manufacture(64735-101)
Establishment
Name Address ID/FEI Operations
Air Liquide Industrial U. S. LP 831995829 manufacture(64735-101)
Revised: 04/2014

Air Liquide Healthcare America Corporation
